320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Name: 320pin 2x8 Ports SFP Connector Female Press-Fit with Light
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: FUYSFP2054-49
Price: 20 USD
Availability: InStock

همه محصولات

سانترنسینی کانکتور
(204)

اتصال DIN 41612
(170)

اتصال SCSI
(67)

50 Pin Centronics Connector
(57)

36 Pin Centronics Connector
(20)

64 پین کانکتور مرکزی
(28)

اتصالات روتر V.35
(11)

اتصالات D-sub
(66)

کابل مونتاژ کابل IDC
(14)

کانکتور IDC Crimp
(31)

کانکتور قهرمان
(91)

اتصال دهنده IEEE 1284
(33)

اتصال RJ45
(9)

اتصال پورت موازی
(44)

اتصال PCB زنانه
(49)

اتصال PCB مردانه
(28)

پین اتصال جوش
(36)

اتصال کارت
(17)

رابط SFP
(16)

گواهی

چت IM آنلاین در حال حاضر

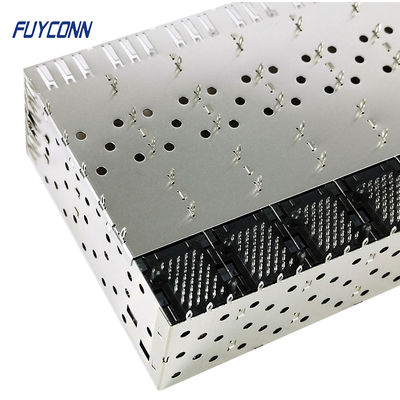

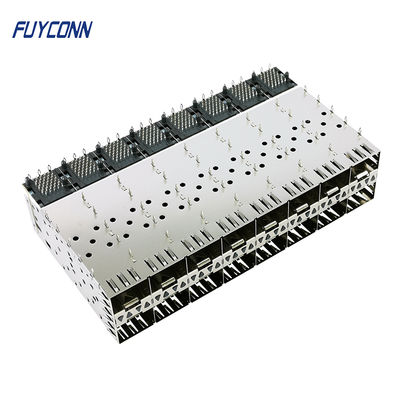

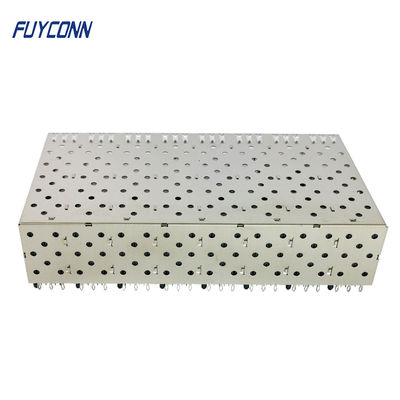

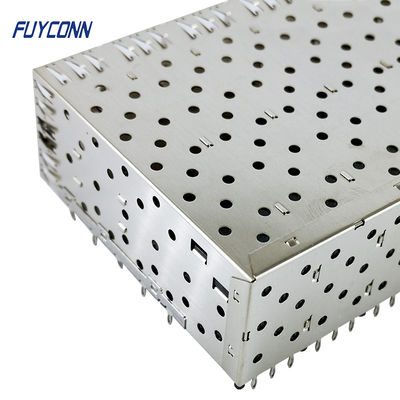

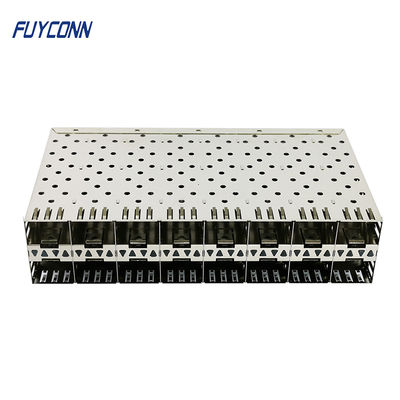

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

تصویر بزرگ : 320pin 2x8 Ports SFP Connector Female Press-Fit with Light

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	FUYCONN
شماره مدل:	FUYSFP2054-49

پرداخت:

مقدار حداقل تعداد سفارش:	100
قیمت:	$20

مخاطب

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

شرح

تعداد پین:	320pin	تعداد بنادر:	2*8 پورت دوگانه
جنس اتصال:	زن	ماده عایق:	PBT
مواد پین تماس:	برنز فسفر	نوع نصب:	Press-Fit
لایت پیپ:	بله	رتبه فعلی:	1AMP
ولتاژ مقاوم:	500 ولت برای یک دقیقه	مقاومت عایق:	500mΩ دقیقه (در DC500V)
مقاومت در برابر تماس:	حداکثر 35mΩ	دمای عمل:	-55 درجه سانتیگراد تا +105 درجه سانتیگراد
سرعت سرعت داده ها:	حداکثر 10 گیگابایت در ثانیه (SFP+)	پایان:	نیکی نقره
قابل پشته:	بله
برجسته کردن:	320pin SFP connector female press-fit,2x8 ports SFP connector with light,press-fit SFP connector with warranty , 2x8 ports SFP connector with light , press-fit SFP connector with warranty

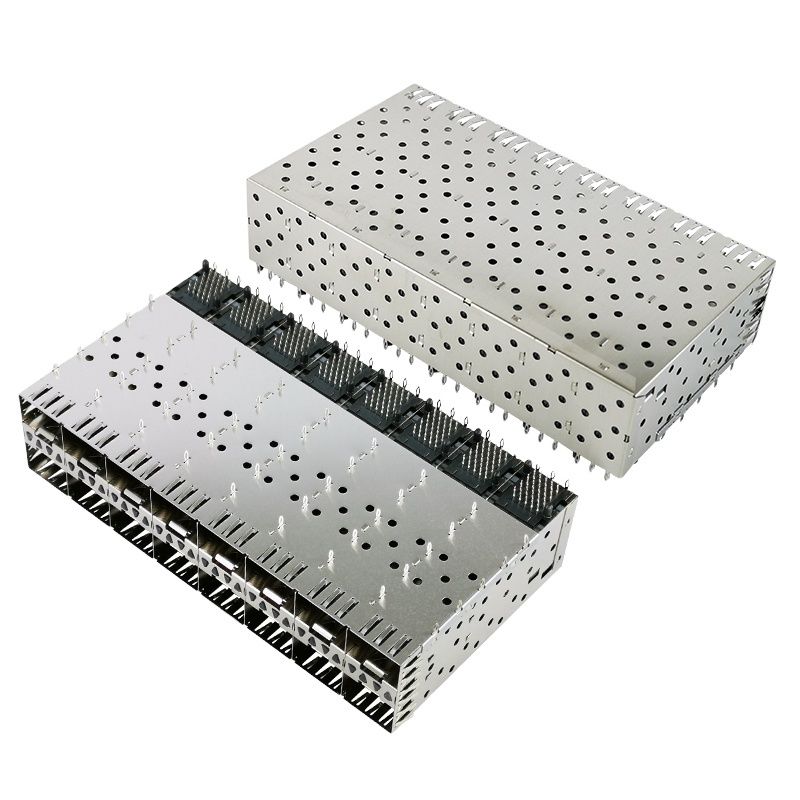

320pin Press-Fit Stackable 2x8 Ports SFP Connector with Light

SFP Cage Assembly 2-by-8 Multi-Port Female Connector

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s. These connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards.

The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size. Both SFP and SFP+ connectors are available in copper and optical variants, making them versatile solutions for high-speed networking applications.

Product Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Number of Positions:	320pin
Ports:	2×8 (16 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch systems
Data/Communications infrastructure
High-end servers
Telecommunications hardware
Fibre Channel and Gigabit Ethernet systems

Packaging & Shipping

Our products are securely packaged using:

Vacuum trays for protection
PE bags for moisture resistance
Sturdy boxes/cartons for shipping
PE bags with strips for added security

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our UL- and SGS-certified products comply with RoHS directives and maintain a defect rate below 0.5%. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
