6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

تصویر بزرگ : 6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	FUYCONN
شماره مدل:	fuysfp2034

پرداخت:

مقدار حداقل تعداد سفارش:	100
قیمت:	$5

مخاطب

6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

شرح

نوع اتصال دهنده:	PCB	تعداد بنادر:	1*6 درگاه دوگانه
جنس:	زن	رنگ:	نقره ای
ماده عایق:	PBT	مواد پین تماس:	برنز فسفر
خیساندن:	سنجاق	لایت پیپ:	با لوله سبک
رتبه فعلی:	1AMP	ولتاژ مقاوم:	500 ولت برای یک دقیقه
مقاومت عایق:	500mΩ دقیقه (در DC500V)	مقاومت در برابر تماس:	حداکثر 35mΩ
دمای عمل:	-55 درجه سانتیگراد تا +105 درجه سانتیگراد	سرعت سرعت داده ها:	تا 10 گیگابایت در ثانیه
پیکربندی بندری:	6 پورت
برجسته کردن:	6 port SFP+ cage with light pipe,press-fit SFP+ connector 1x6,SFP+ cage with press-fit termination , press-fit SFP+ connector 1x6 , SFP+ cage with press-fit termination

Press-Fit Termination 1x 6 SFP Cage Without Light, SFP Series 6 Ports Straight SFP+ Cage

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a major optical transceiver for data communication. Introduced in early 2000 to replace the GBIC connector, it offers greater port density while handling up to 4.25Gb/s. The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s for Fibre Channel, 10GbE, SONET, OTN, and other standards.

Product Features

Product Name:	SFP Cage
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	No Connector, Cage only
Ports:	1x6 (6 Ports)
Finish:	Nickel Silver
Lightpipe:	With Light

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Networking
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet
Servers

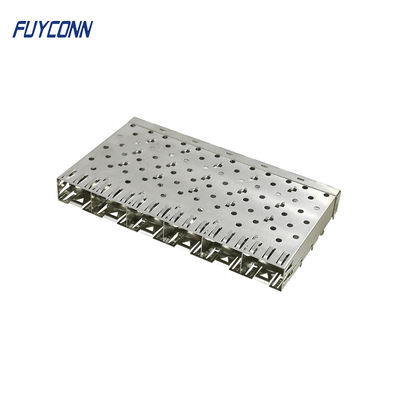

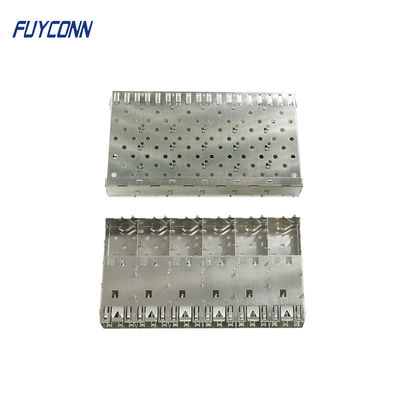

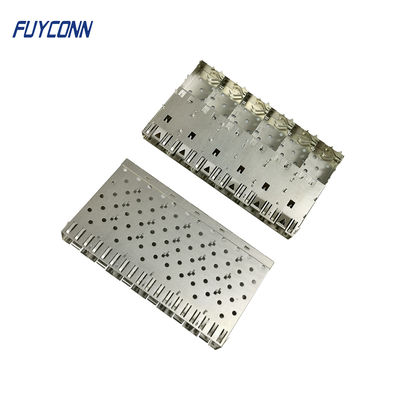

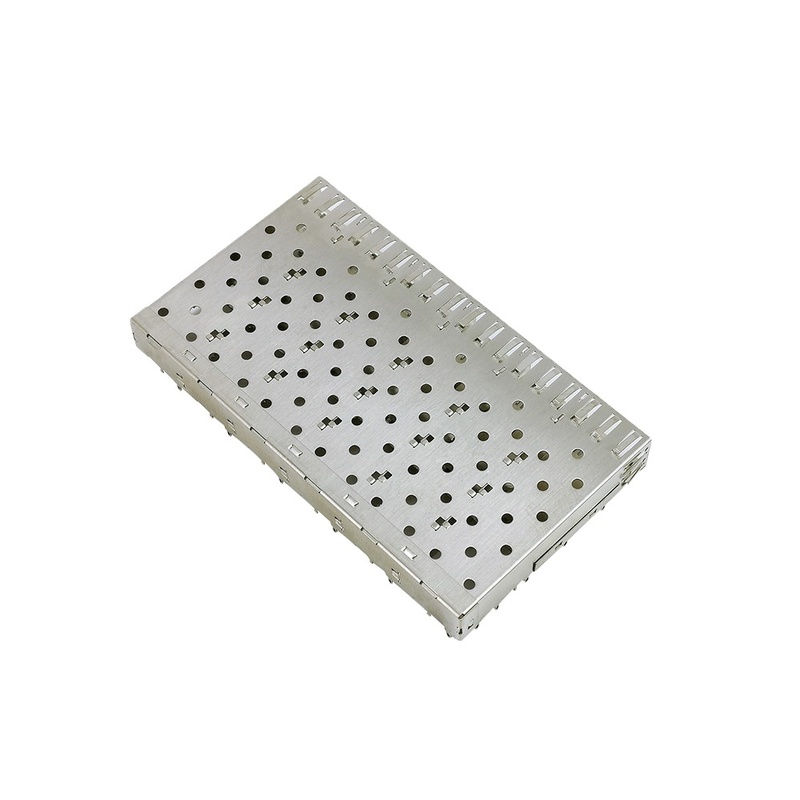

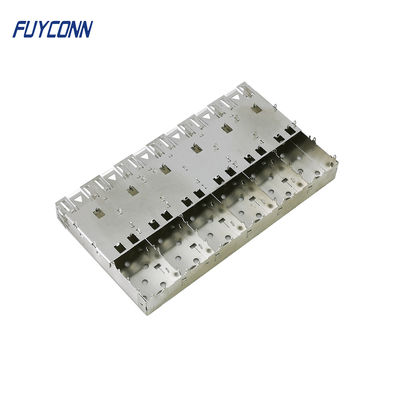

Product Images

Packaging & Shipping

Strong Package Options:

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips
